For large movements
Maintenance-free, hard wearing and long-lasting
Optimized design allowas for easy and safe installation of the centring bar
Ensure even installation with respect to both, height and width
Very flat design
Higher safety bey means of improved skid resistance

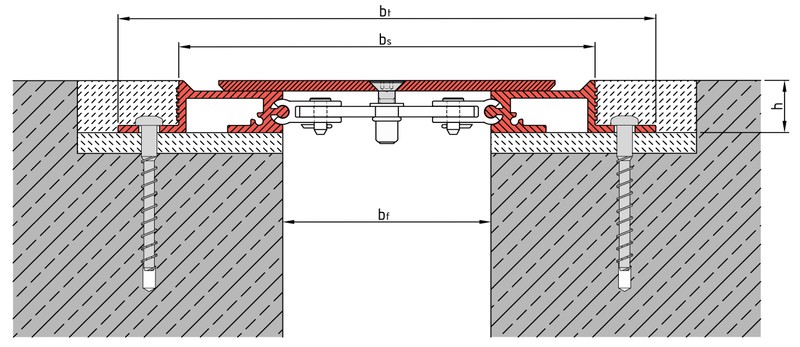

| Standard version | Joint width max. [mm] | Total movement thermal [mm] | Total movement seismic [mm] | Joint width visible [mm] | Total width [mm] | Joint height [mm] | Load capacity Pedestrians | Thickness plate [mm] |
|---|---|---|---|---|---|---|---|---|
| FSJ 100 | 100 | 60 (±30) | 114 (+50/-64) | 200 | 258 | 25 | Pedestrians | |
| FSJ 150 | 150 | 60 (±30) | 194 (+80/-114) | 250 | 308 | 25 | Pedestrians | |
| FSJ 200 | 200 | 60 (±30) | 264 (+100/-164) | 300 | 358 | 25 | Pedestrians | |
| FSJ 300 | 300 | 60 (±30) | 414 (+150/-264) | 400 | 458 | 25 | Pedestrians | |
| FSJ 400 | 400 | 60 (±30) | 564 (+200/-364) | 500 | 558 | 25 | Pedestrians |
Joint width by the time of installation. Potential tolerance: ± 10 mm
Corner versions will be designed individually. Details submitted project-wise on request.
Further joint widths available on demand.
Standard colour: Aluminium
Production length: 4 m
| Corner version | Joint width max. [mm] | Total movement thermal [mm] | Total movement seismic [mm] | Joint width visible [mm] | Total width [mm] | Joint height [mm] | Load capacity Pedestrians | Thickness plate [mm] |
|---|---|---|---|---|---|---|---|---|
| FSJ 100 E4 | 100 | 30 (±15) | 100 (±50) | 150 | 179 | Pedestrians | ||
| FSJ 150 E4 | 150 | 30 (±15) | 150 (±75) | 200 | 229 | Pedestrians | ||
| FSJ 200 E4 | 200 | 30 (±15) | 180 (+100/-80) | 250 | 279 | Pedestrians | ||
| FSJ 300 E4 | 300 | 30 (±15) | 280 (+150/-130) | 350 | 379 | Pedestrians | ||
| FSJ 400 E4 | 400 | 30 (±15) | 385 (+200/-185) | 450 | 479 | Pedestrians |
