| Standard version | Joint width max. [mm] | Total movement thermal [mm] | Total movement seismic [mm] | Joint width visible [mm] | Total width [mm] | Joint height [mm] | Load capacity Pedestrians |
|---|---|---|---|---|---|---|---|

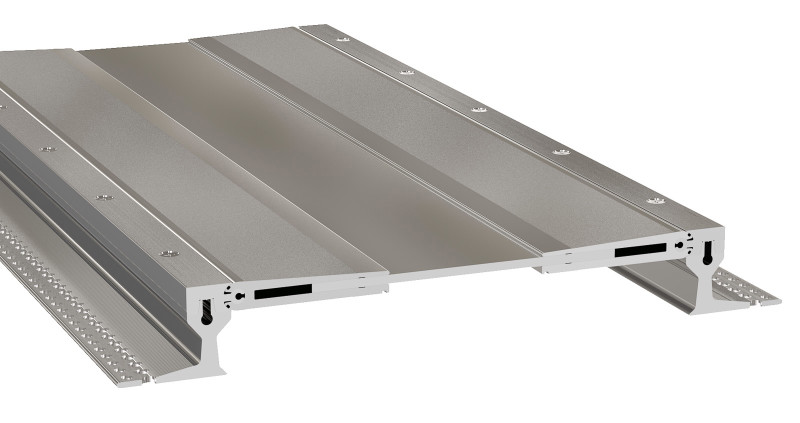

| FSV 500/45 | 400 | 100 (±50) | 200 (±100) | 498 | 620 | 45 | Pedestrians |
| FSV 500/80 | 400 | 100 (±50) | 200 (±100) | 498 | 620 | 80 | Pedestrians |
| FSV 500/130 | 400 | 100 (±50) | 200 (±100) | 498 | 620 | 130 | Pedestrians |
Joint width by the time of installation. Potential tolerance: ± 10 mm
Also available in smaller width (as FSV 280, FSV 285 and FSV 335)
Corner versions will be designed individually. Details submitted project-wise on request.
Further joint widths available on demand.
Production length: 3 m
Standard colour: Aluminium
| Corner version | Joint width max. [mm] | Total movement thermal [mm] | Total movement seismic [mm] | Joint width visible [mm] | Total width [mm] | Joint height [mm] | Load capacity Pedestrians |
|---|---|---|---|---|---|---|---|
| FSV 500/45 E3 | 400 | 473 | 535 | 45 | Pedestrians | ||
| FSV 500/45 E4 | 400 | 473 | 535 | 45 | Pedestrians | ||
| FSV 500/80 E3 | 400 | 473 | 535 | 80 | Pedestrians | ||
| FSV 500/80 E4 | 400 | 473 | 535 | 80 | Pedestrians | ||
| FSV 500/90 E3 * | 400 | 473 | 535 | 90 | Pedestrians | ||
| FSV 500/90 E4 * | 400 | 473 | 535 | 90 | Pedestrians | ||
| FSV 500/130 E3 * | 400 | 473 | 535 | 130 | Pedestrians | ||
| FSV 500/130 E4 * | 400 | 473 | 535 | 130 | Pedestrians | ||
| FSV 500/140 E3 * | 400 | 473 | 535 | 140 | Pedestrians | ||
| FSV 500/140 E4 * | 400 | 473 | 535 | 140 | Pedestrians |
